the one and only e30 s52 engine swap
-
I got no pressure plate bolts with the girpforce kit. @KaiserRolls Is this normal?
-
I got no pressure plate bolts with the girpforce kit. @KaiserRolls Is this normal?
Mine did not come with any either. Could snag some decent stuff at the hardware store or re use if you’re in a pinch
-

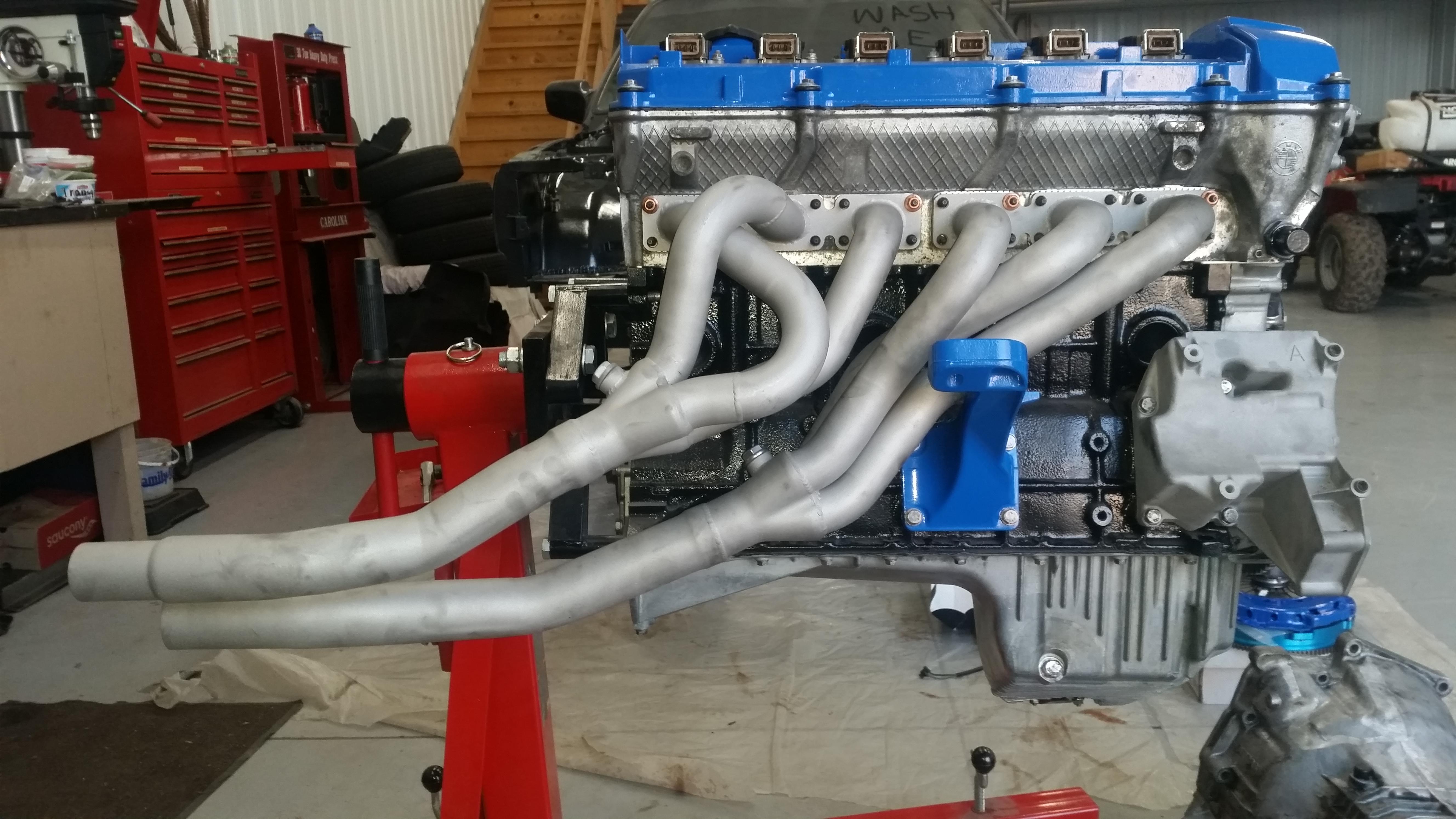

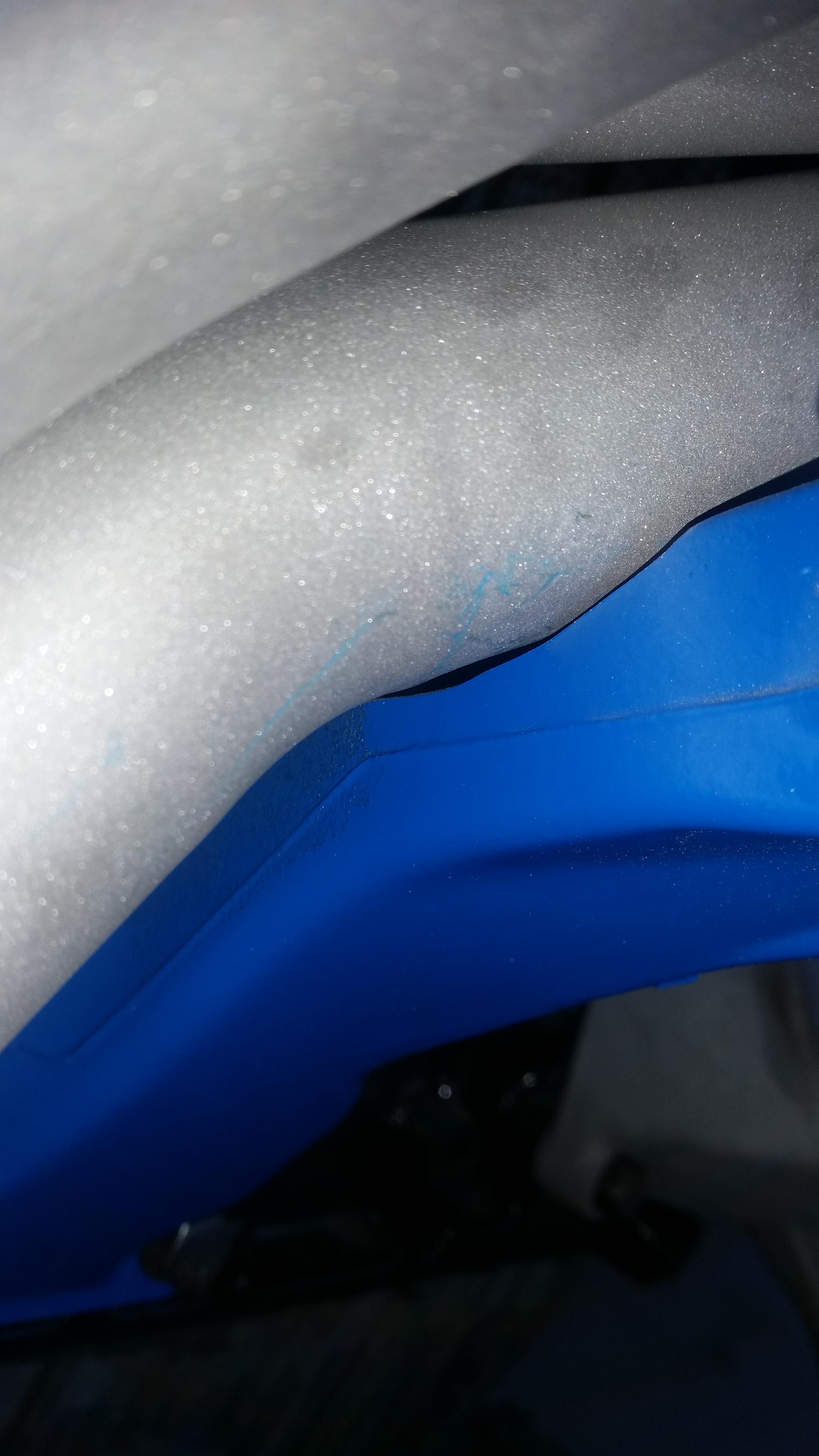

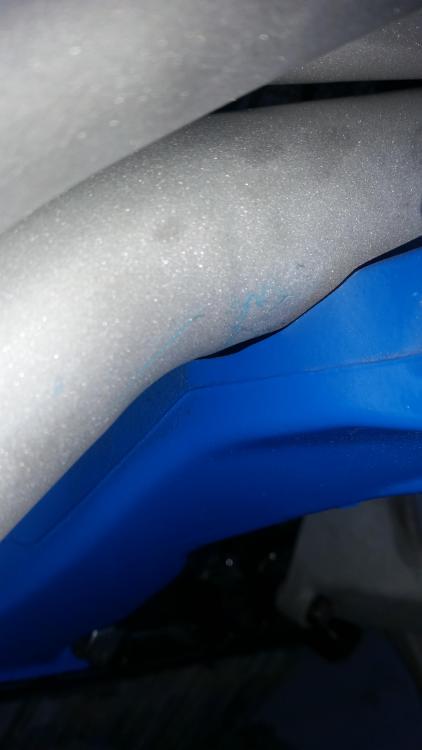

So I did end up having to do a little modifying to get the headers to clear the motor mount.

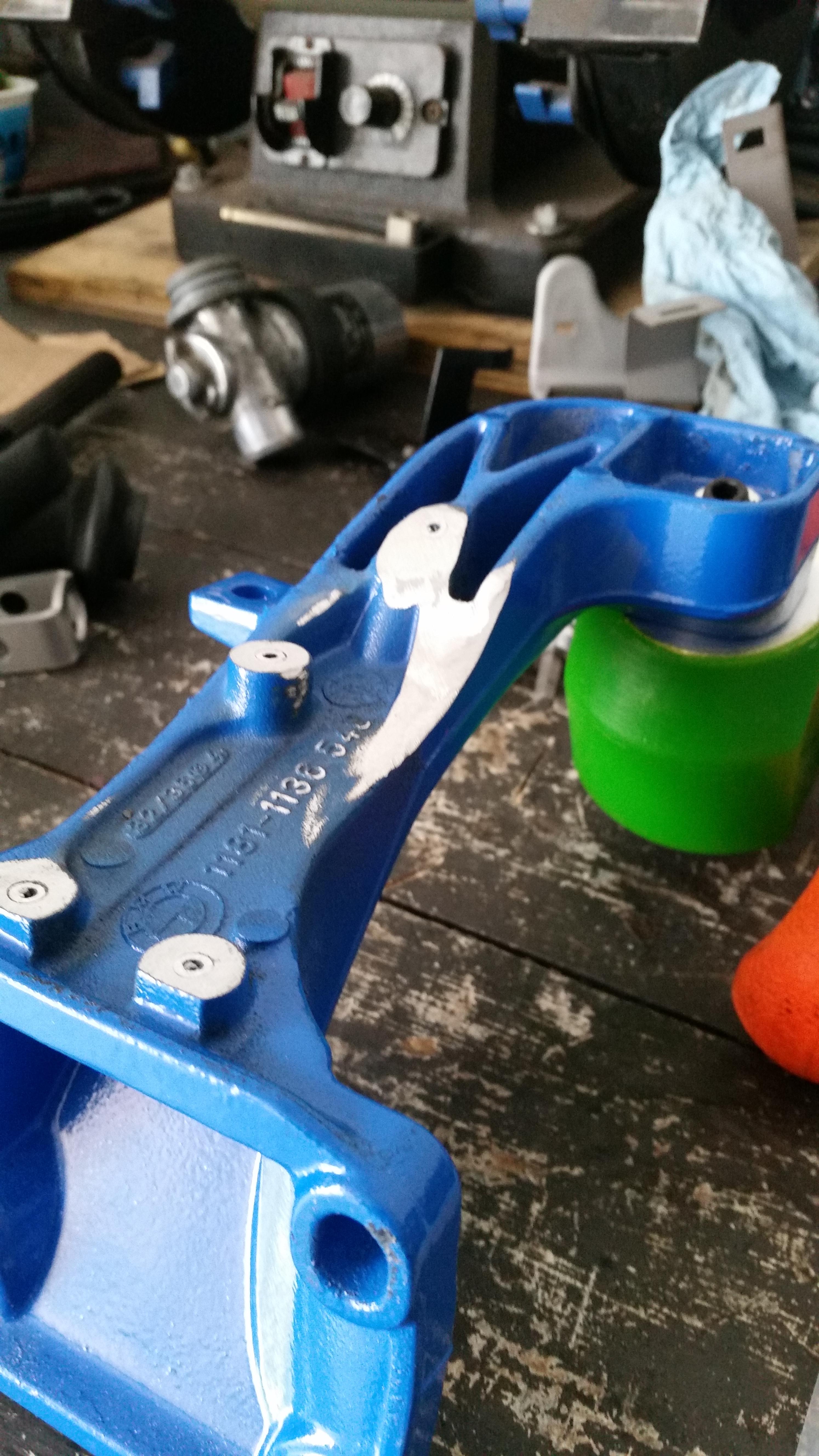

After a little shaving everything is fitting up nicely.

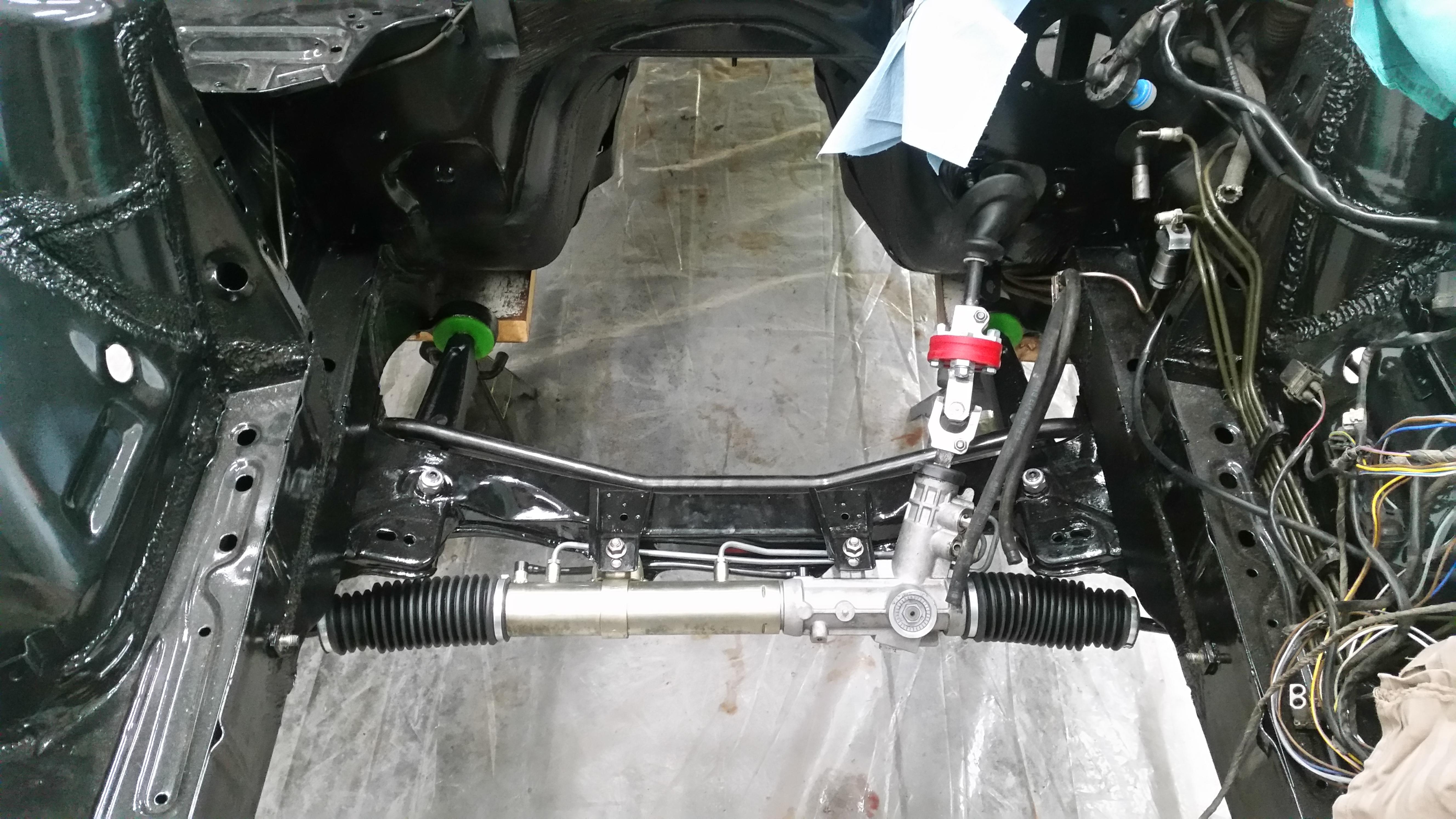

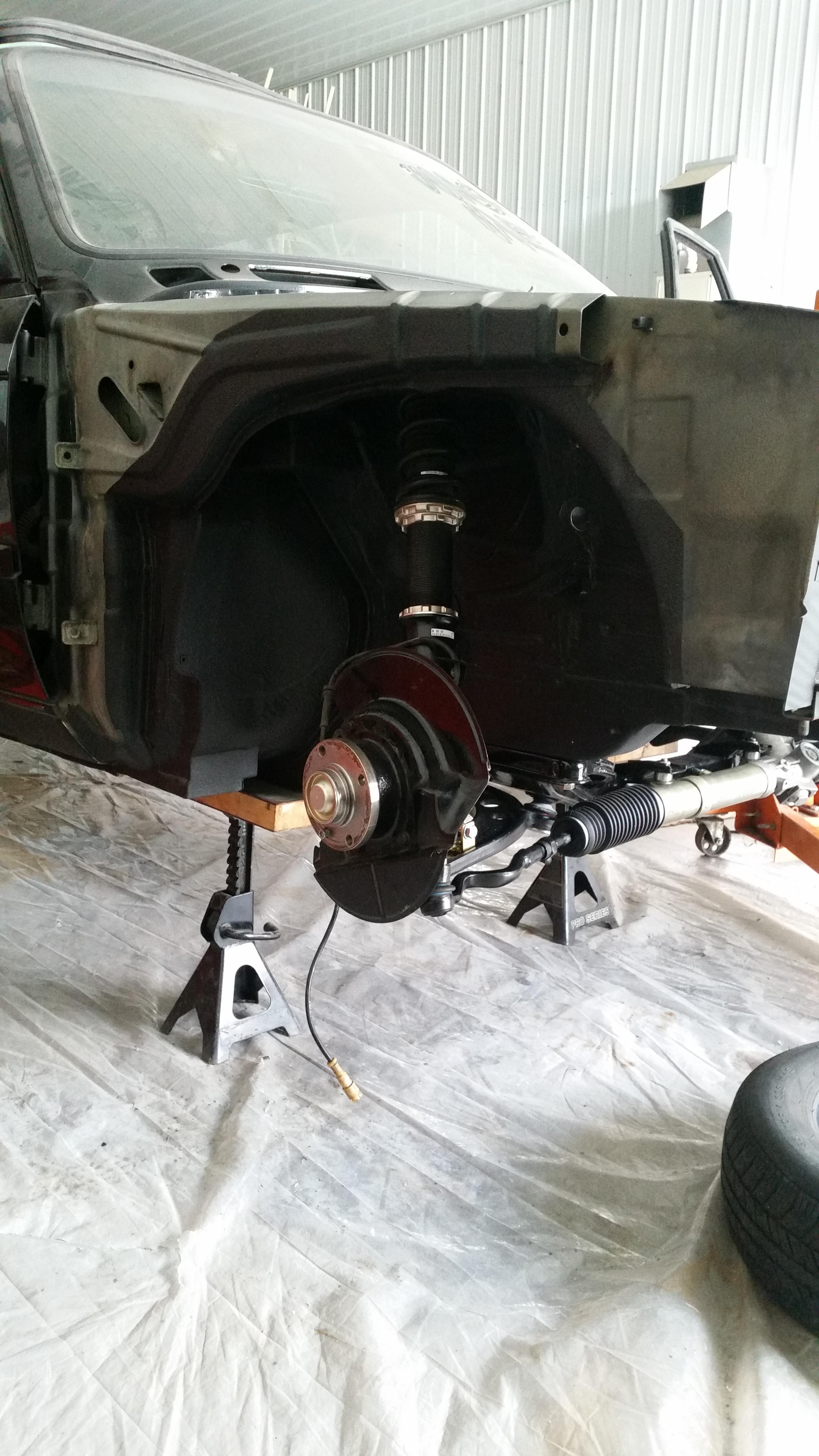

Front suspension and steering reinstalled.

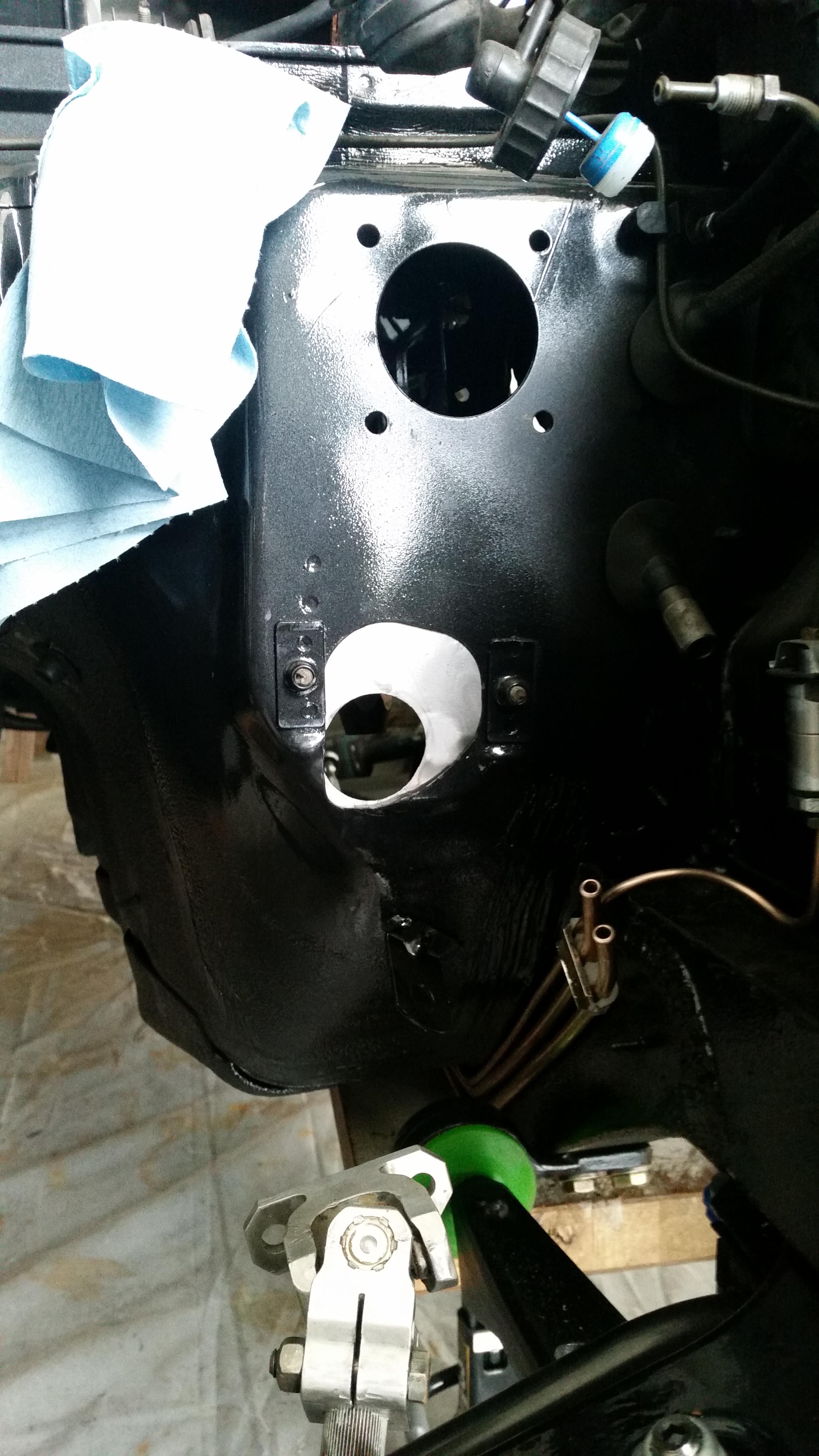

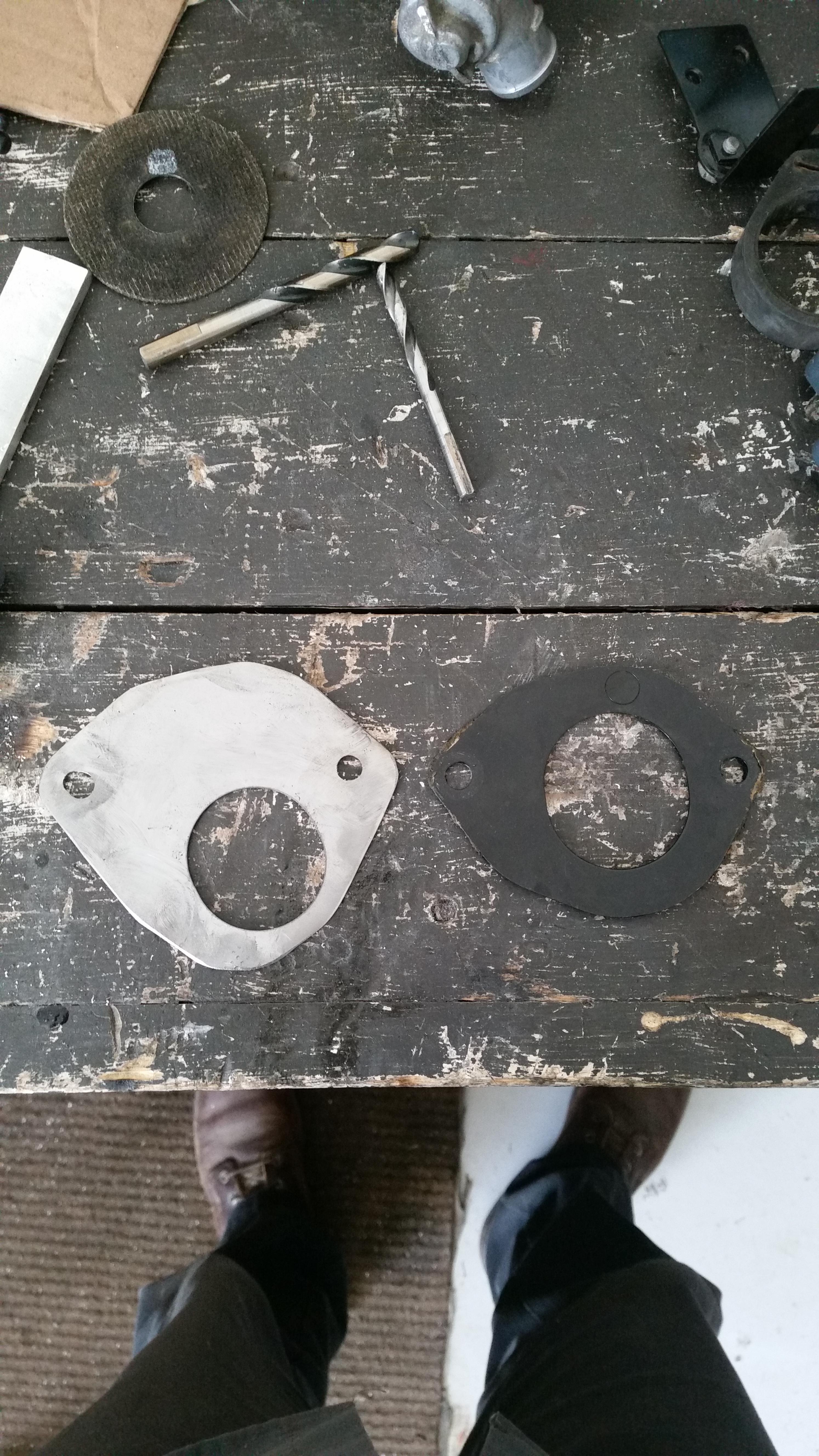

Made some measurements for a new plate for the re-positioned steering shaft and got that cut out. The hole where the boot goes in is slightly smaller then the original. The boot fits very snug in there which I like a lot. ( The new piece is out of 12 gauge stainless)

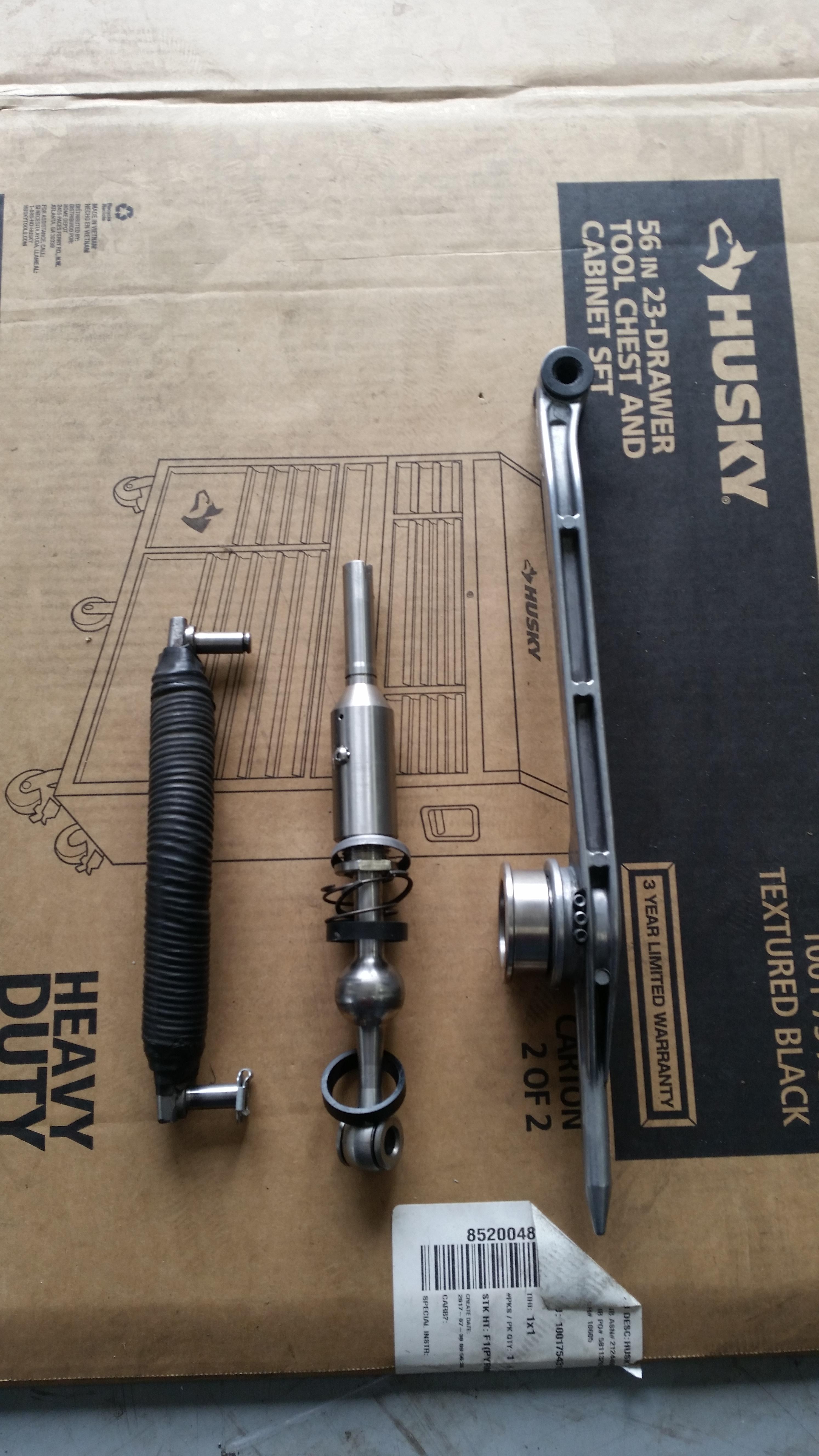

UUC shifter showed up. The guy threw in a weighted selector rod he made himself with the shifter, which seems to consist of just a bunch of heavy gauge wire wrapped tightly around. Not gonna be using it as we ended up making a dssr instead so if anyone is interested in it you are more then welcome to have it.

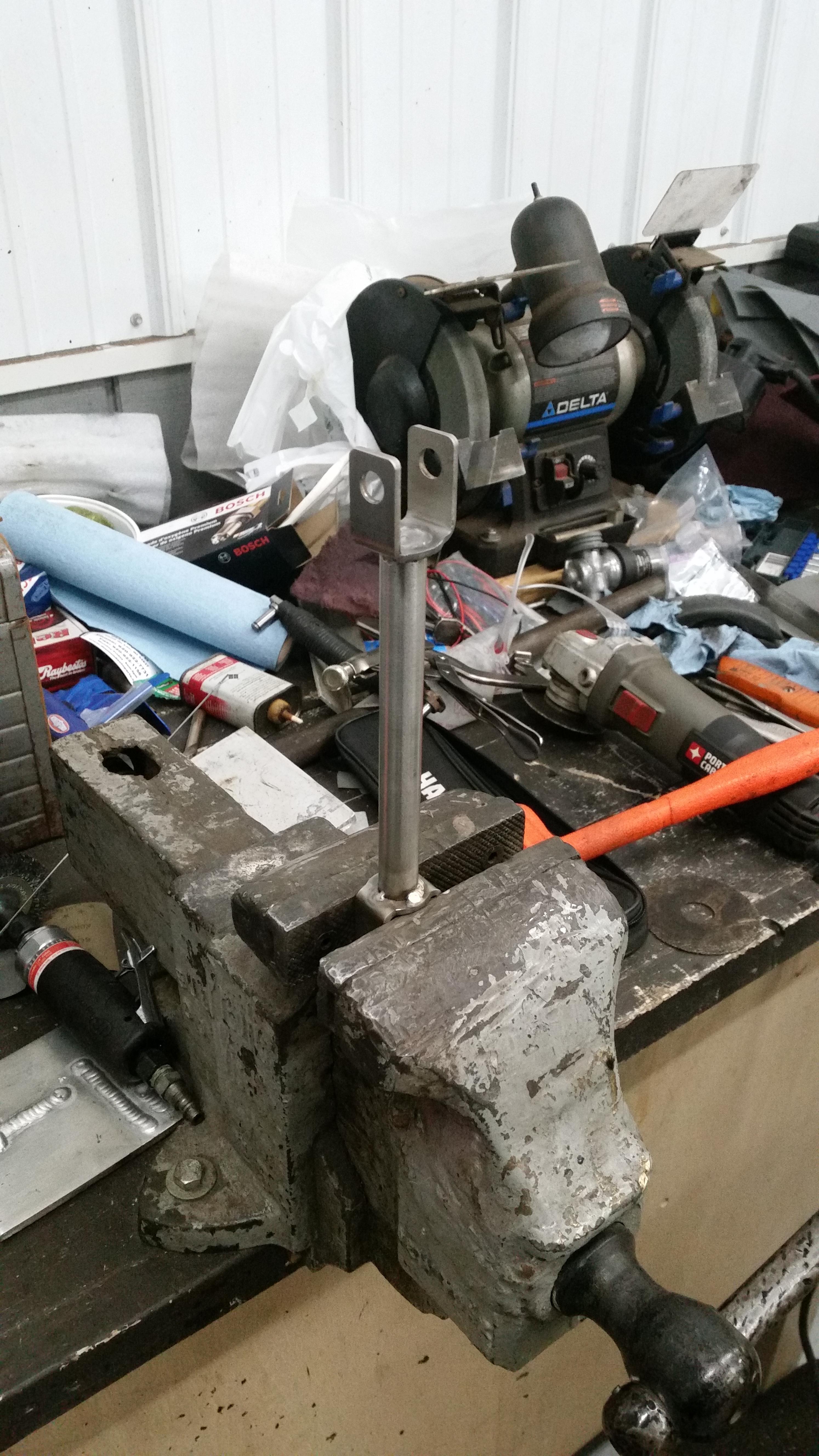

Speaking of dssr...
So things went a little differently then anticipated so the gap is a bit wider which meant I had to throw in nylon washers on both sides to make the shifter and selector joint fit nice and tight. Once the washers are in though it is a very snug fit and I think is gonna work out great anyways. I did remember to angle the one side 10 degrees to compensate for the angle of the g260 trans when installed. ( All materials are off stainless as well )

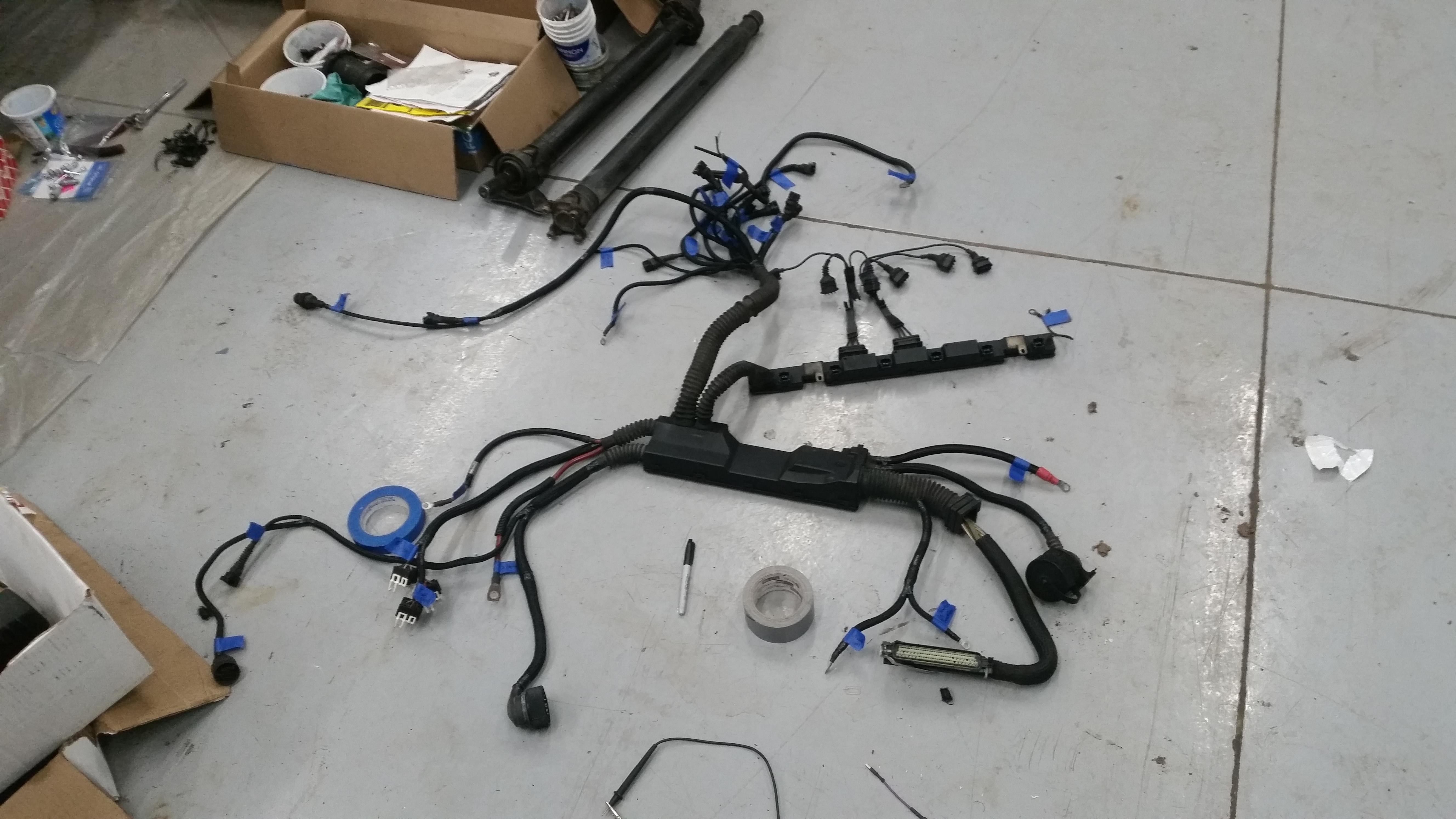

Got the Obd1 harness dissected up and all the connectors identified and labeled.

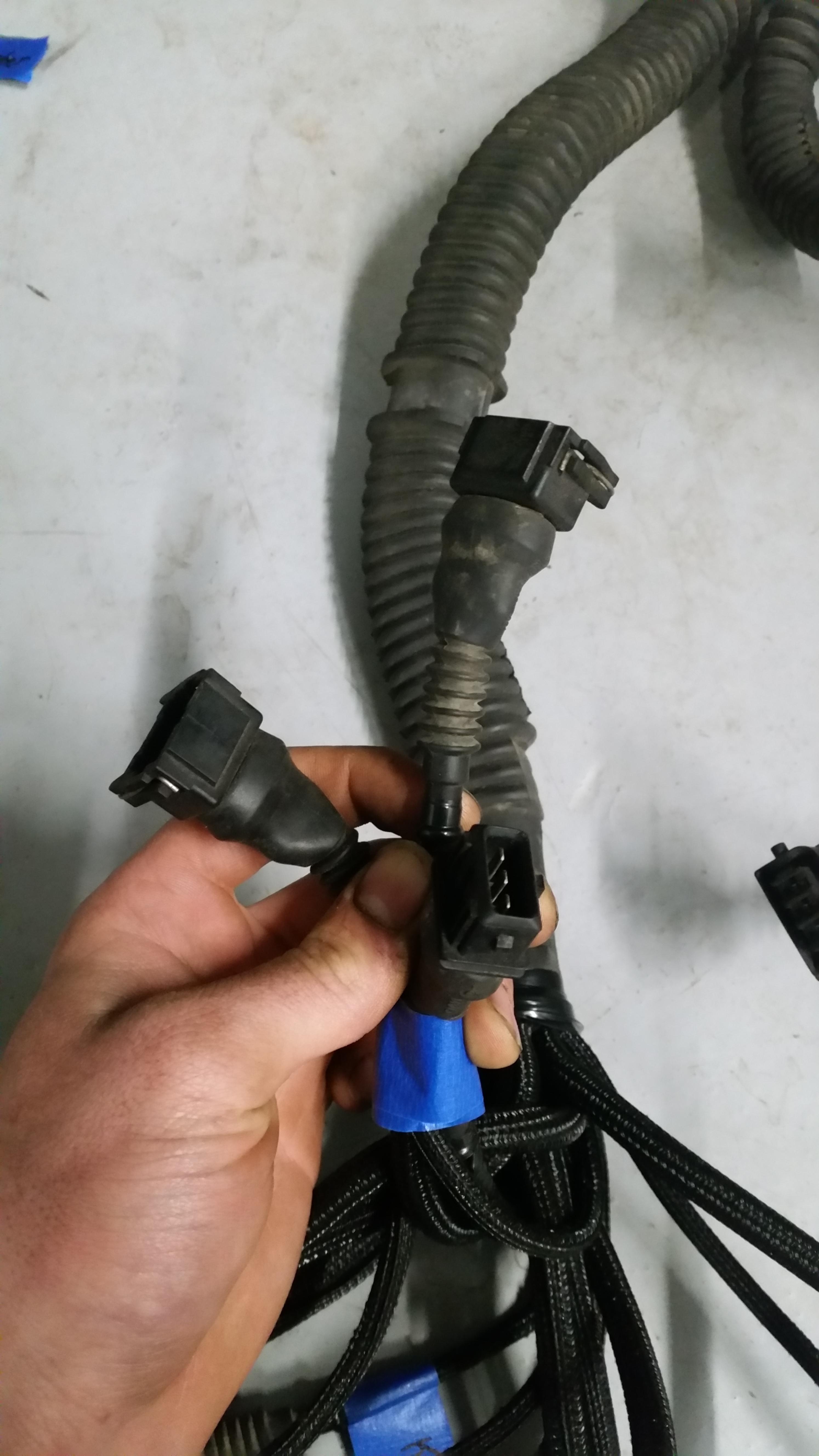

Everything makes sense except for one particular thing. It's the cam sensor harness connector.
It's a male connector, and so is the cam sensor. Do I need to to cut and splice in a female plug on the harness side? I did some digging and checking but couldn't find anything on it. I do know for sure it is the cam sensor though.
Now for exciting news...

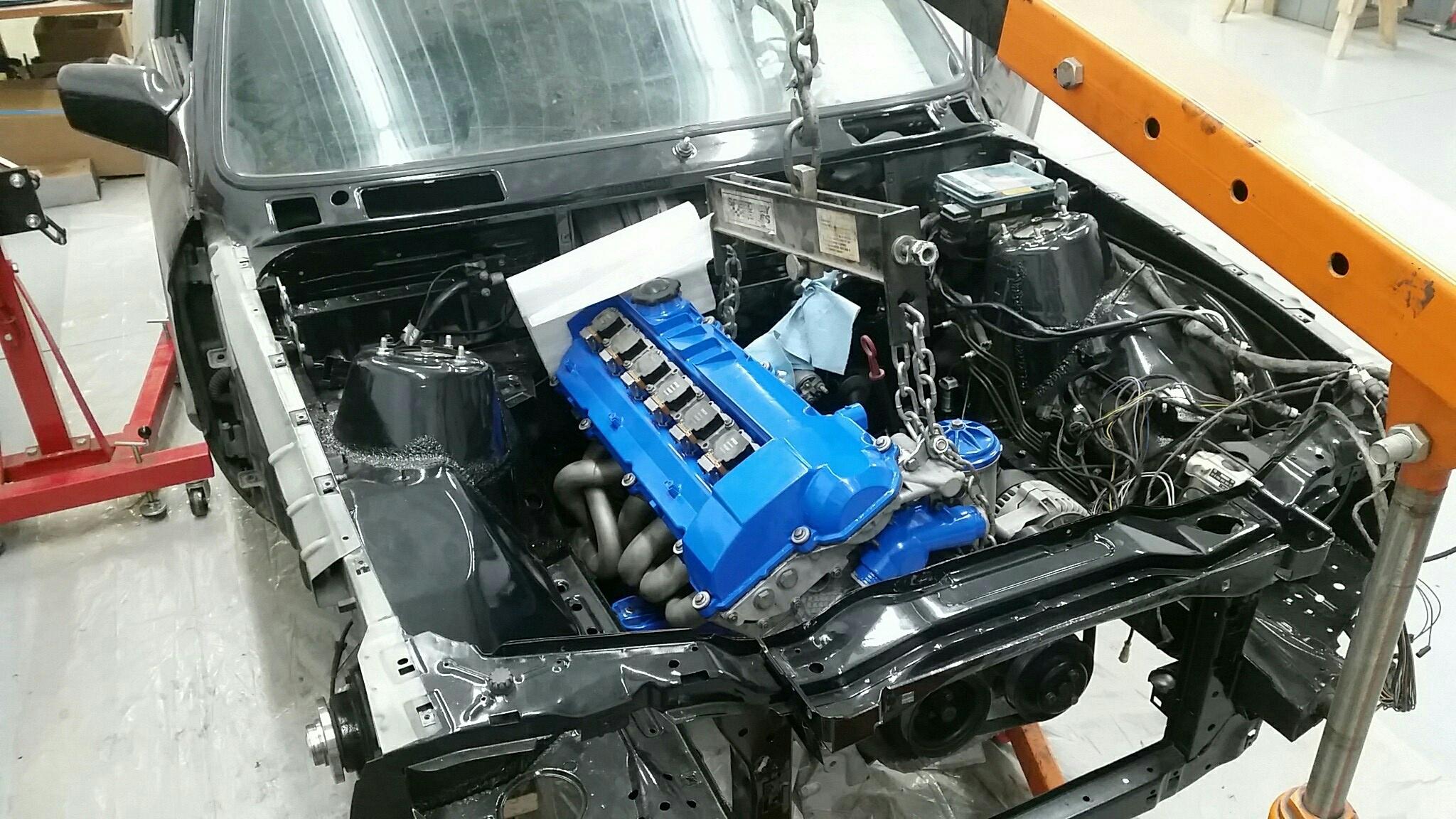

Motor is off the stand now.
Got the flywheel, pilot bearing and clutch kit installed. I ended up picking up some hex bolts for the pressure plate at Menards, they worked great!
Trans is installed on the motor as well as the starter. Everything torqued down.
...
I did go ahead and hook up the shifter linkage to see how the dssr fit up. It looks like I'll be removing that flange dampener after all.
Just to be sure here, Do I have to modify the shifter carrier at all sense it is twisted as well?

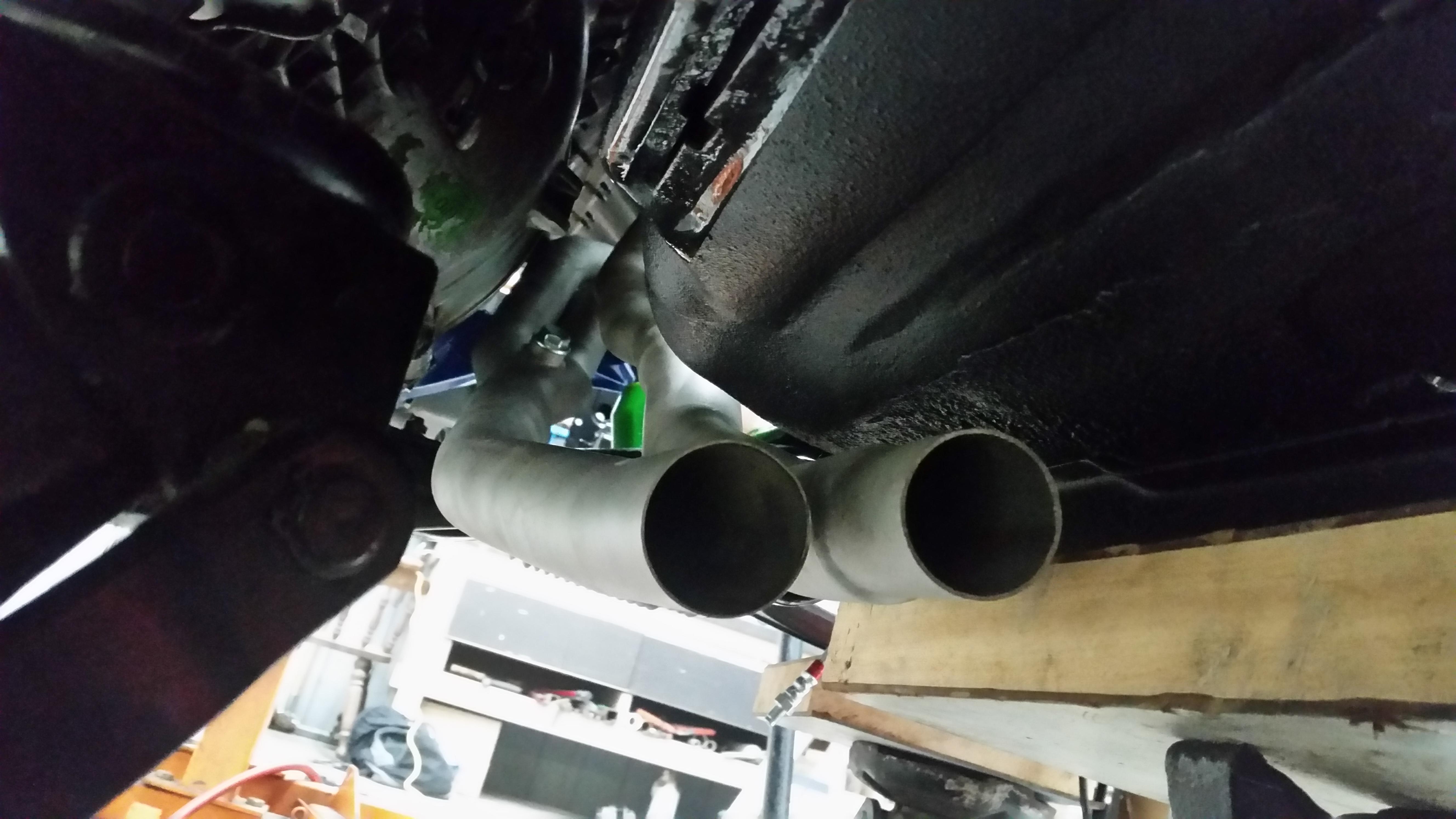

On a even more positive note, Header clearances are looking great! I will be cutting off the reduced section on the one header as well.
Next things on the to do list:
Get the harness installed on the motor
Brake booster modified and installed
remove, ceramic coat and re-install headers
flock the dash a second time
clean carpet
get drive shaft and shifter linkage fully installed
I have brake rotors and brake pads showing up tomorrow so I will hopefully get around to getting those installed and bleed sometime this week.
Sent my slave cylinder back to fcp for warranty replacement, hoping to see that back sometime this week so I can get that installed and bleed as well.
This is the last week of school for me so as always I am getting slightly swamped with last minute projects and finals so I will work my hardest to find time and get over to the shop and get things cranked out. Of course I want to get the car going asap but not trying to meet any dead lines like the picnic as there is no way the car will be ready for that by then anyways. I do although still plan on coming down and hanging out with everyone, hopefully put a few names to faces.
-
Looking forward to meeting you at the picnic! The cam sensor has a female connector which fits with the male connector on the harness. I had to order a different cam sensor because the first one I bought was the wrong gender/different plug. It needs to be an M50/S50 cam sensor
I cant remember what gender everything is supposed to be but all I know is there was once a gay situation requiring a new sensor purchase
-
Damn you @GunMetalGrey
-
-
Damn you @GunMetalGrey
Easy chief!
Is this because of your gender fluidity? -
Easy chief!
Is this because of your gender fluidity?It is.
It's not your fault, lol. I thought for sure I had the right sensor because real oem was giving me that same part number as the sensor you gave me under a couple different obd1 vehicle. Made me keep thinking something was funky with harness.
-
-
^ For sure, it's a super cost effective option and I've used a few myself with no issues.
-
-
I feel so lame with my wimpy amounts of progress lately.
Got the output flange removed, pulled the dampener off so I don't have anymore dssr clearance issues, then reinstalled. Had to modify a 30mm socket just slightly to fit around the nut.
Now that the dssr clears, everything feels nice and tight and the shifter is very crisp. As you can see though, I'm having some lineup issues.
I have no issues with shifting and it goes into every gear with no interference's but the thing is completely off center and looks wacky as hell so I'm just curious what others have done or if they had similar issues.
Ceramic coat headers... check
Re-installed them and was relieved when I crawled under and was able to screw in my O2 sensor with just enough clearance on the original bungs welded on the headers.
Last week I pulled the dash back out and threw another layer of the flock it kit on there. It needs about a week to cure completely before blowing off access and reassembling.
At the moment I'm waiting for the last of my parts to show up for the motor so to keep chugging along I took some time to install and bleed the entire brake system, brake pedal feels great and there are no leaks!
Figured out why I was having troubles with the booster rod not bolting up to the pedal...
I was trying to use the 944 clevis (left) instead of the original e30 one (right). All I can say is I'm lucky I didn't take any more off the threaded rod cause once I put the e30 one on it fit up perfectly!
On to more brake related things... doesn't look like I will be having a e-brake this season. Instead of replacing the dust shield like any person with a brain would do I decided to sand blast and por-15 the old ones in order to save them. Well, turns out the metal is a bit to corroded through around the holes where the pins go in to hold the shoes and every attempt at installing the pins with the springs results in it just ripping back out and tearing the hole even more, yah!
Sense I will have to replace the dust shields (which means pulling the trailing arms back off and the wheel hub) I removed the e-brake lines and decided I'm just gonna run no e-brake for this season and mess around with reinstalling it next winter.
I did get the carpet scrubbed as best I could this last weekend. There are a few stains that are most definitely coming out but they are in areas where the floor mats will be covering so I'm not gonna worry about it to much.
Hoping to get the carpet and dash reinstalled by the end of this week.
Also gonna start tearing the front seats apart for reupholstering.
Oh! one other thing I should mention is I found an alternative replacement for the gas tank tube.
https://www.advancedfluidsolutions.co.uk/m16-x-15mm-swivel-nut-x-7mm---8mm-hose-tail-516-2107-p.asp
I located this website off the forums from a guy who had found this part that has the correct flared ends for the tank. With the barbed end sides you just have to run a rubber gas hose with a bit of slack from one to the other. Now these parts are coming from the UK so I'm not entirely sure when they will be showing up but the cost was so inexpensive I couldn't not give it a try and according to this guy, they worked great with no leaks.
-
I feel so lame with my wimpy amounts of progress lately.
Please.
Your progress has made most off the people around here look lazy and pathetic, myself included. That being said, it's all the little nit-picky PITA details that make the difference between a "finished" project and a pile of parts that runs and drives. Keep it up!
Don't tell @GunMetalGrey but I did the same mod to his 30mm this past weekend to get the input flange off my diff
-
(ya I know, the pics are terrible. I dropped my phone and the camera lens hit a small rock and cracked so now I get fun little glares on every picture)
-
I like hearing these noises.
-
I like hearing these noises.
