FuturisticConcept Art BMW E36 with a V8 on a bottom dollar budget

[Jdesign]

Tj delivered.

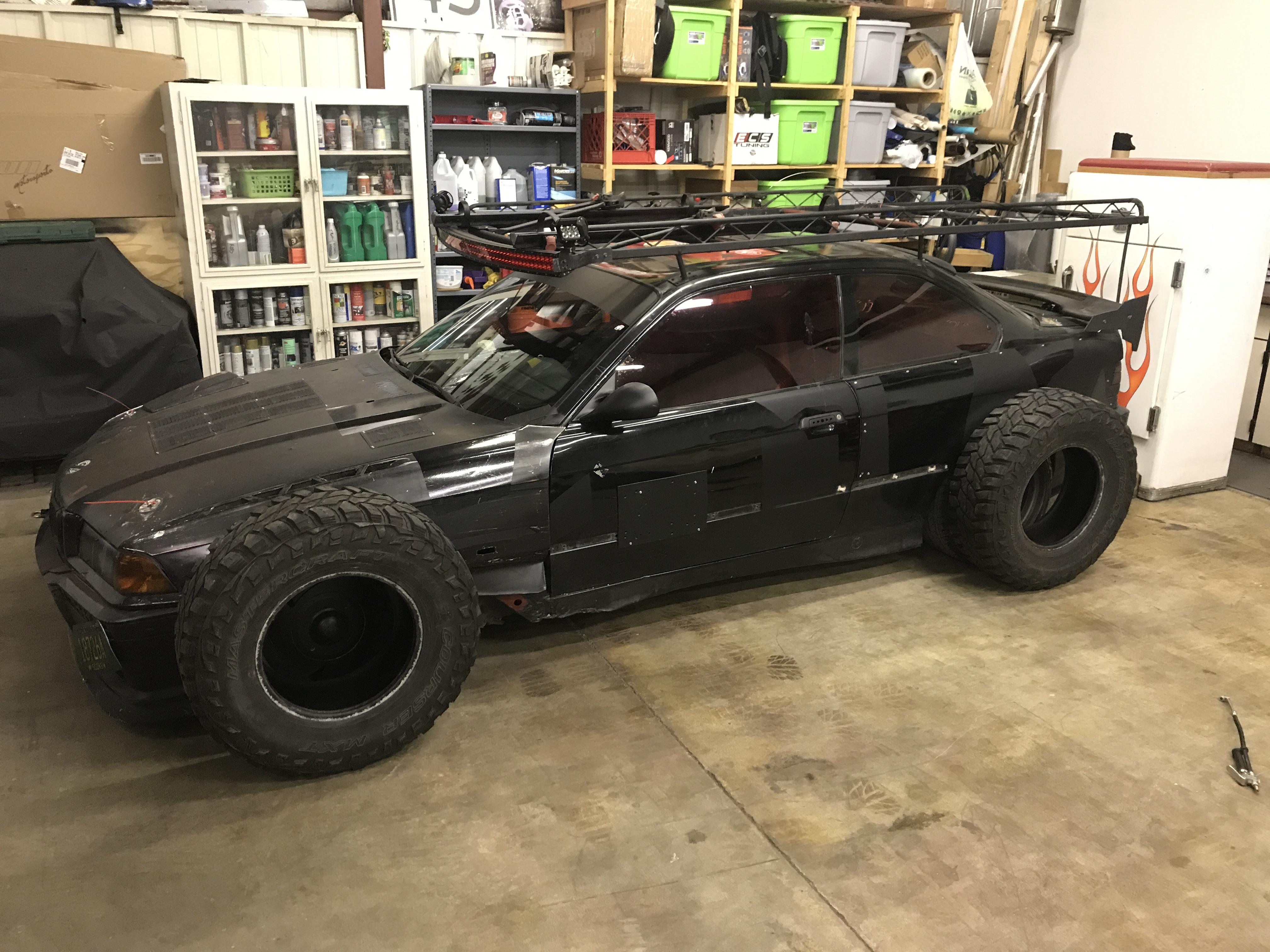

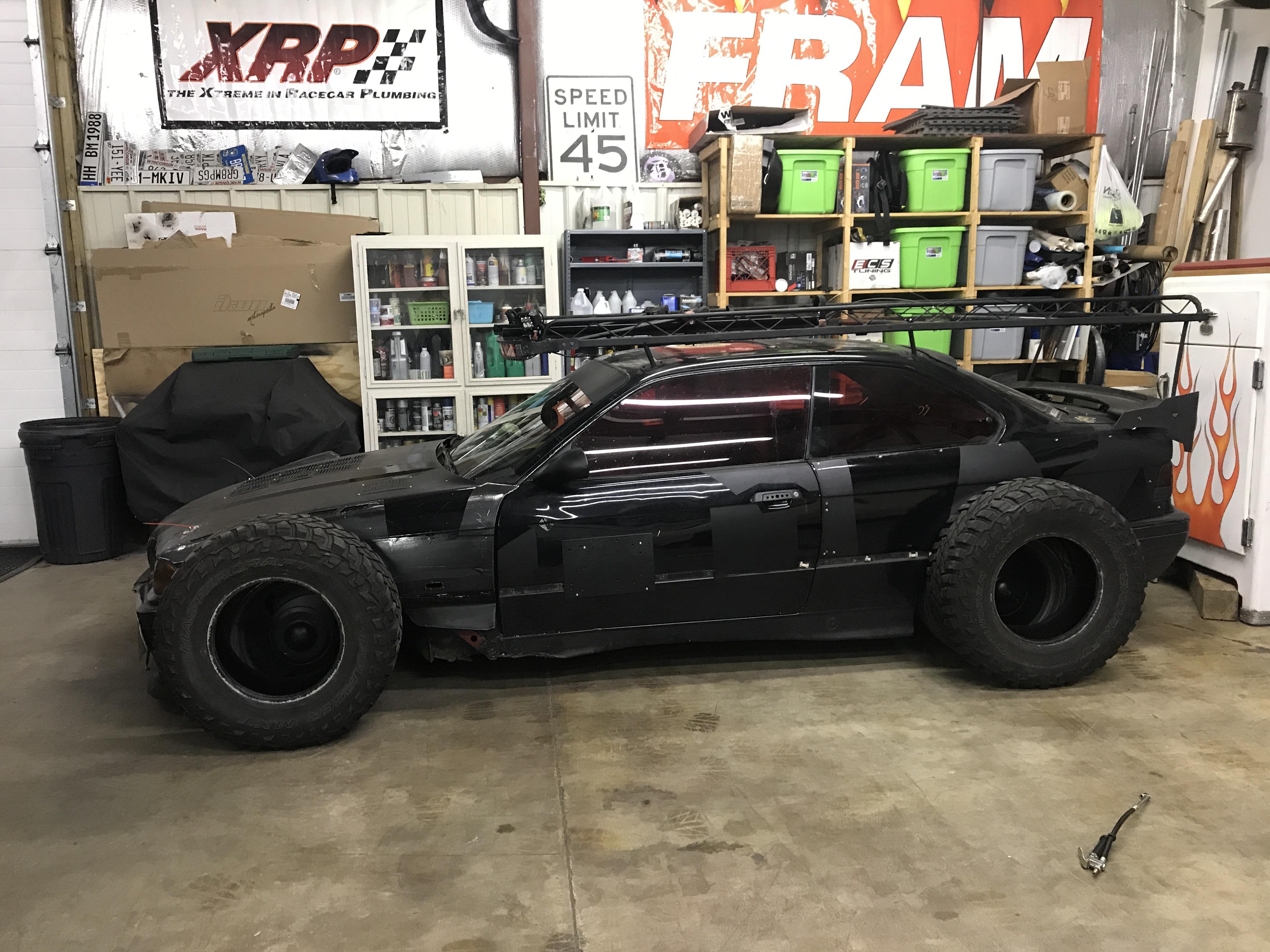

I was able to scoop a tank, rear subframe, brakes, axles, andddd...............Some nice sized tires 255/75R16

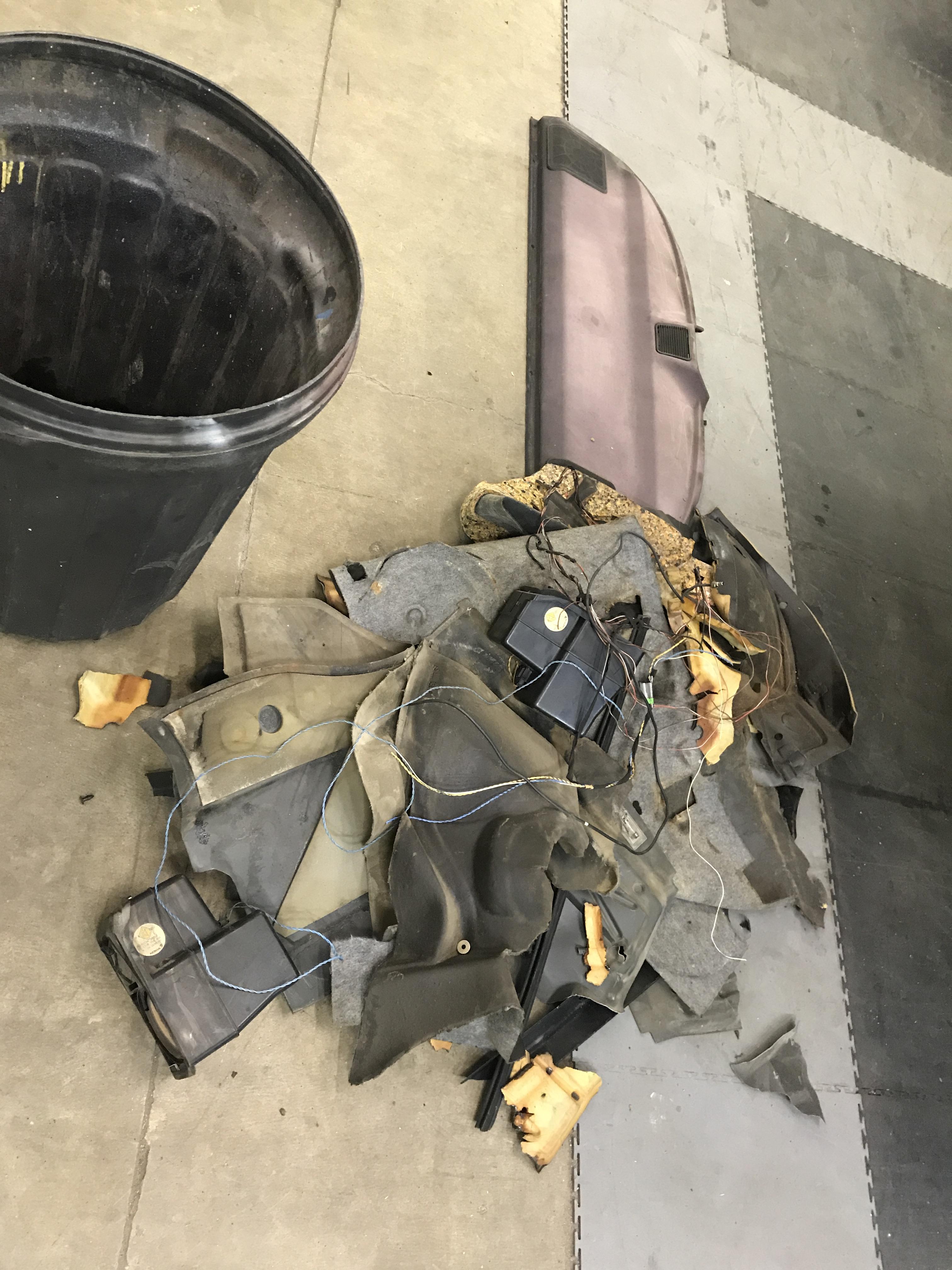

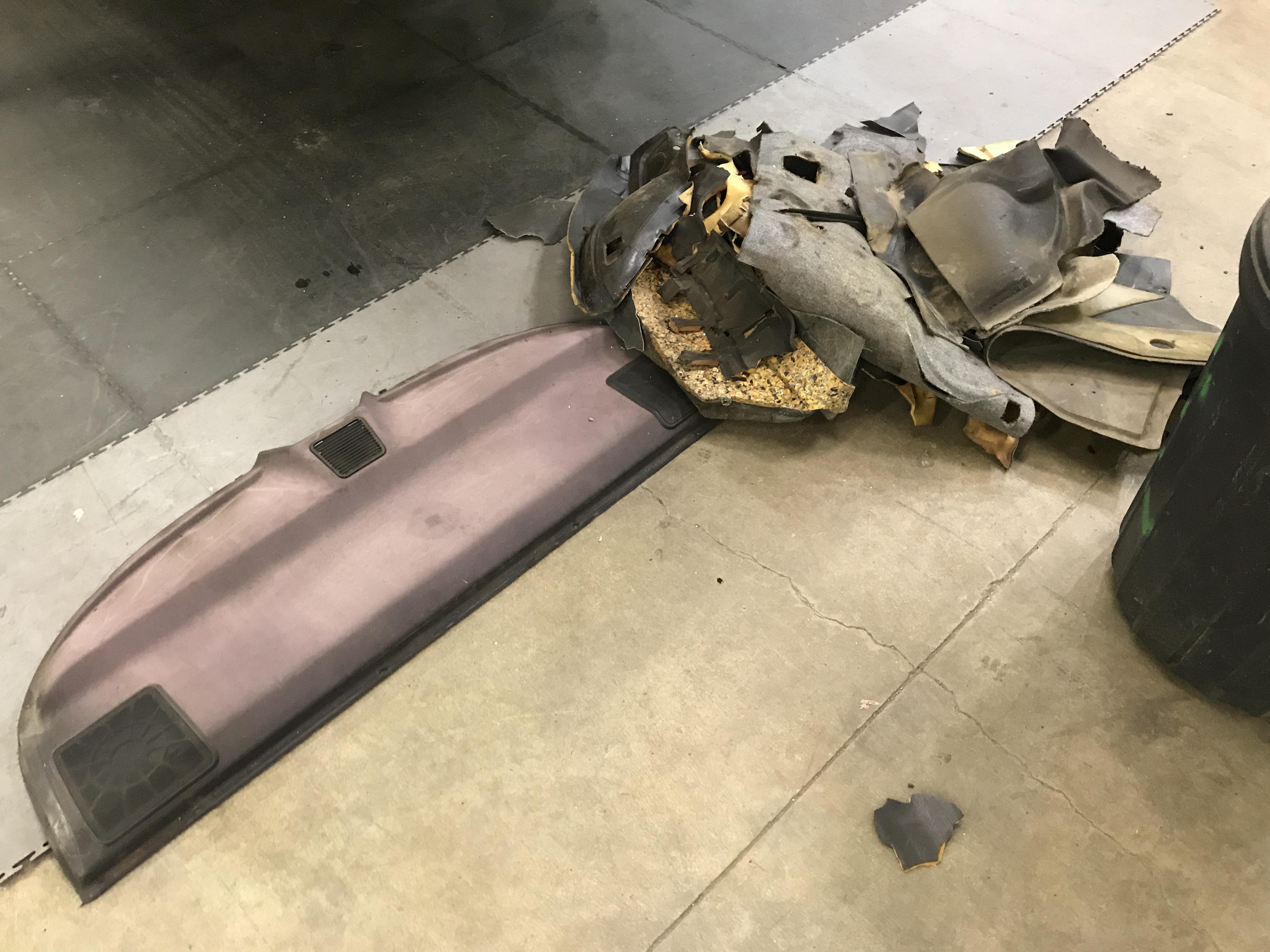

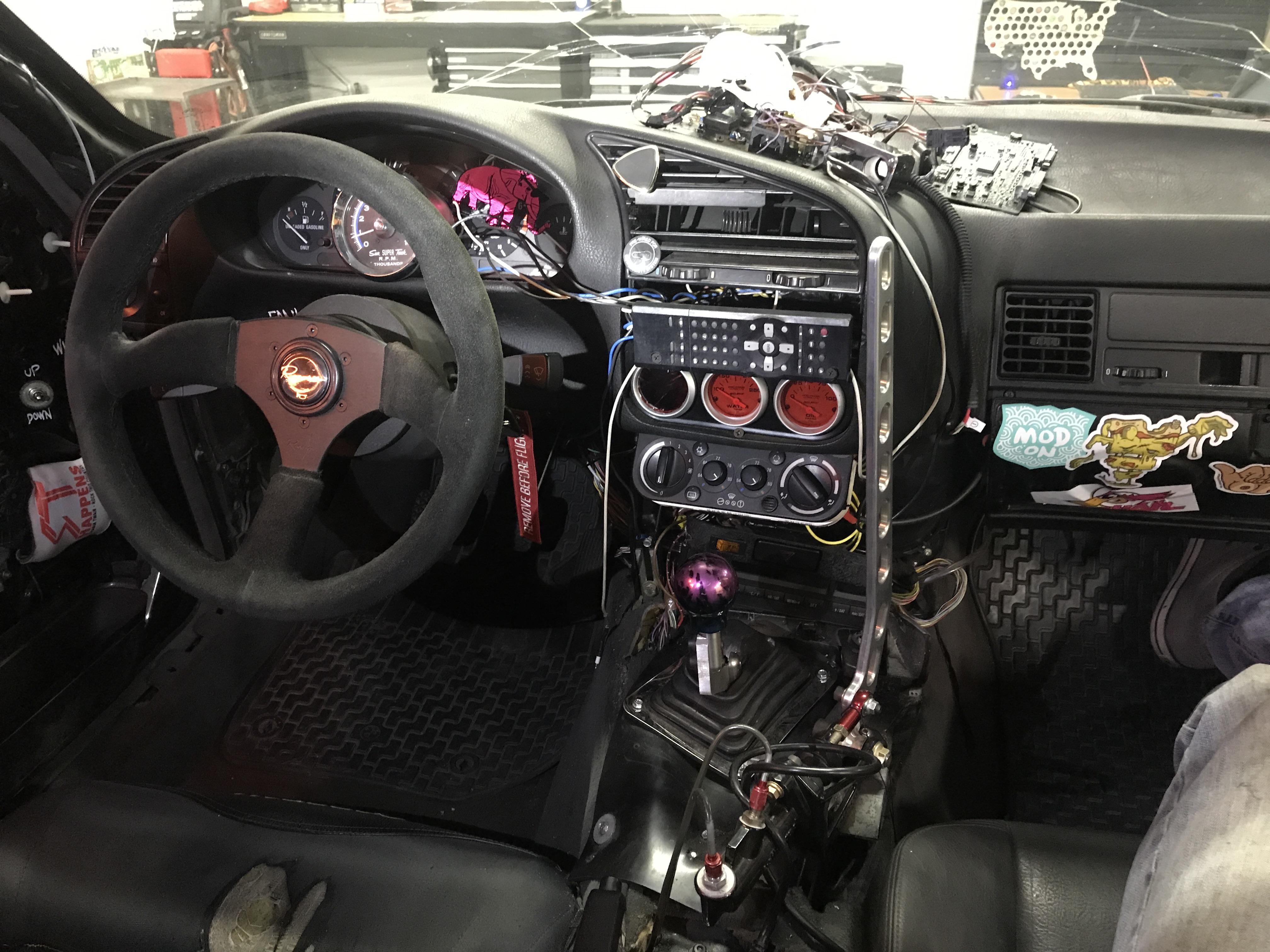

I forgot to take pics last time, but I cleaned up the interior, tinted the bright gauges with some left over red,  and added a USB charger. I also removed all of the remaining sound deadening and covers in the back half of the car trying to find the fuel leak. Doing so I found a long lost bag of weed. LOL

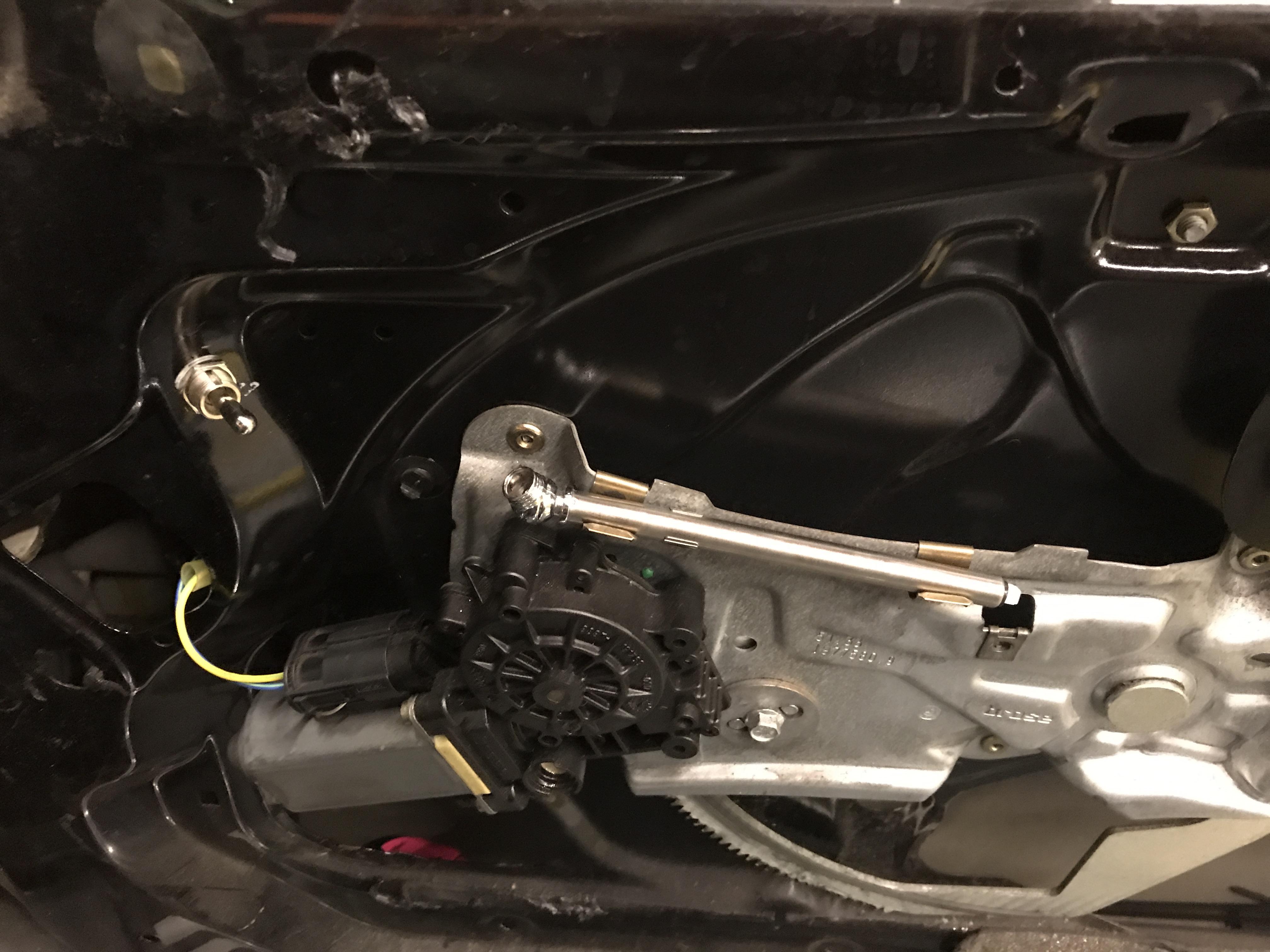

I also noticed that the door has a built in tire gauge holder! How convenient

[Jdesign]

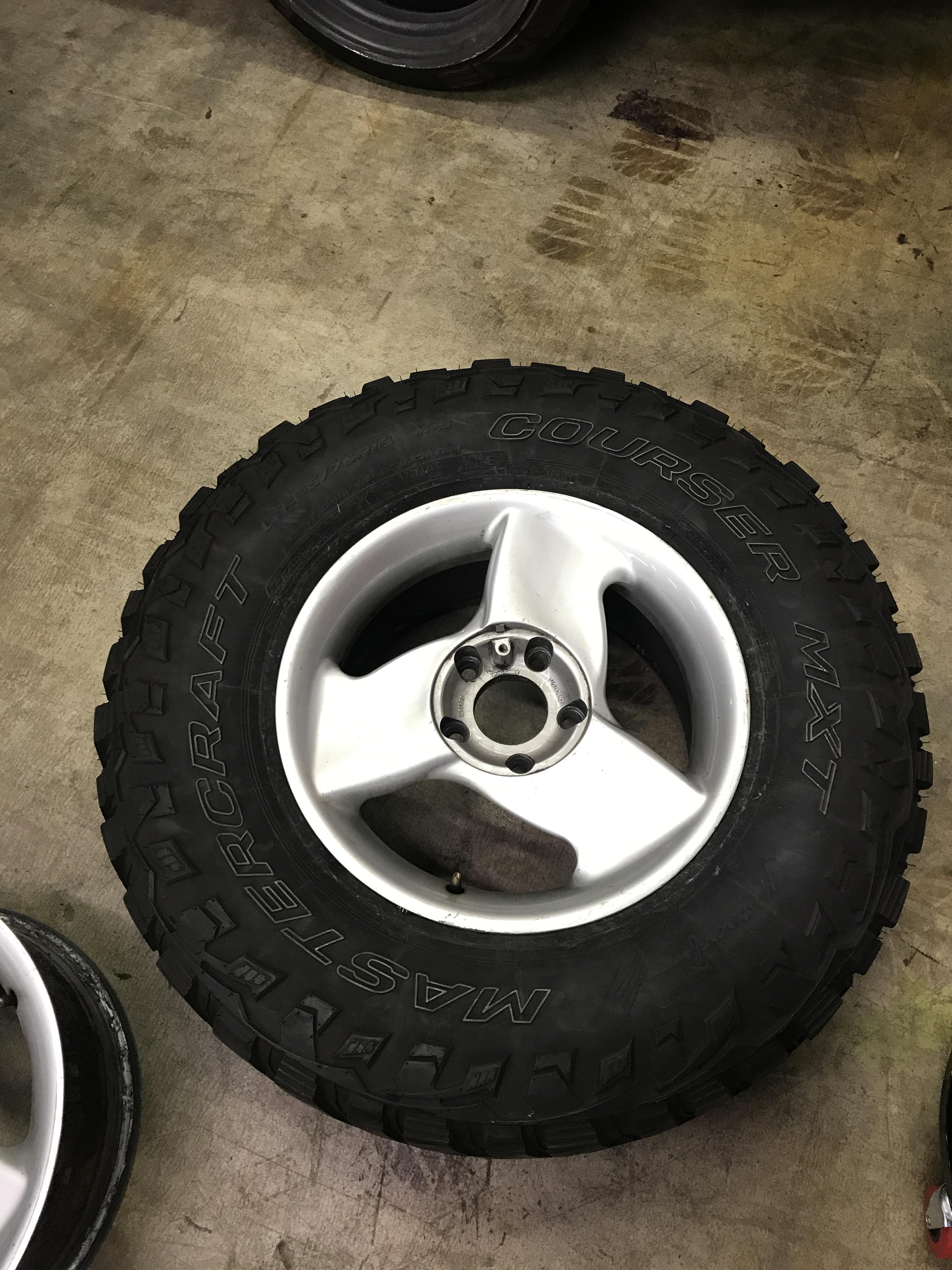

Still haven't lifted this, I did in fact dismount the slicks from the Procast wheels and mounted one tire. Sadly, I think I will need to find different tires or wheels with a much much lower offset. I would need to run a 3" spacer just to make these work.

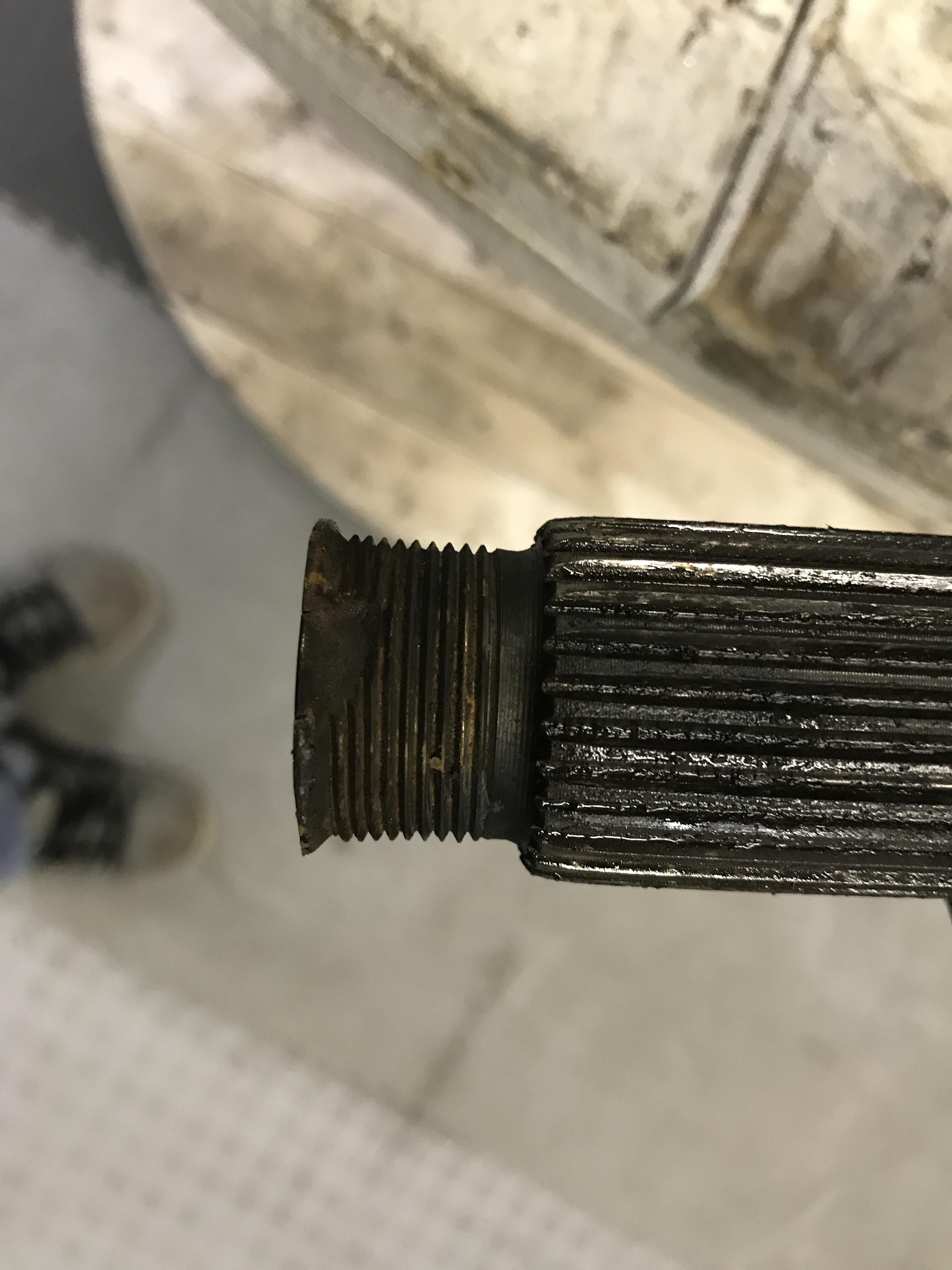

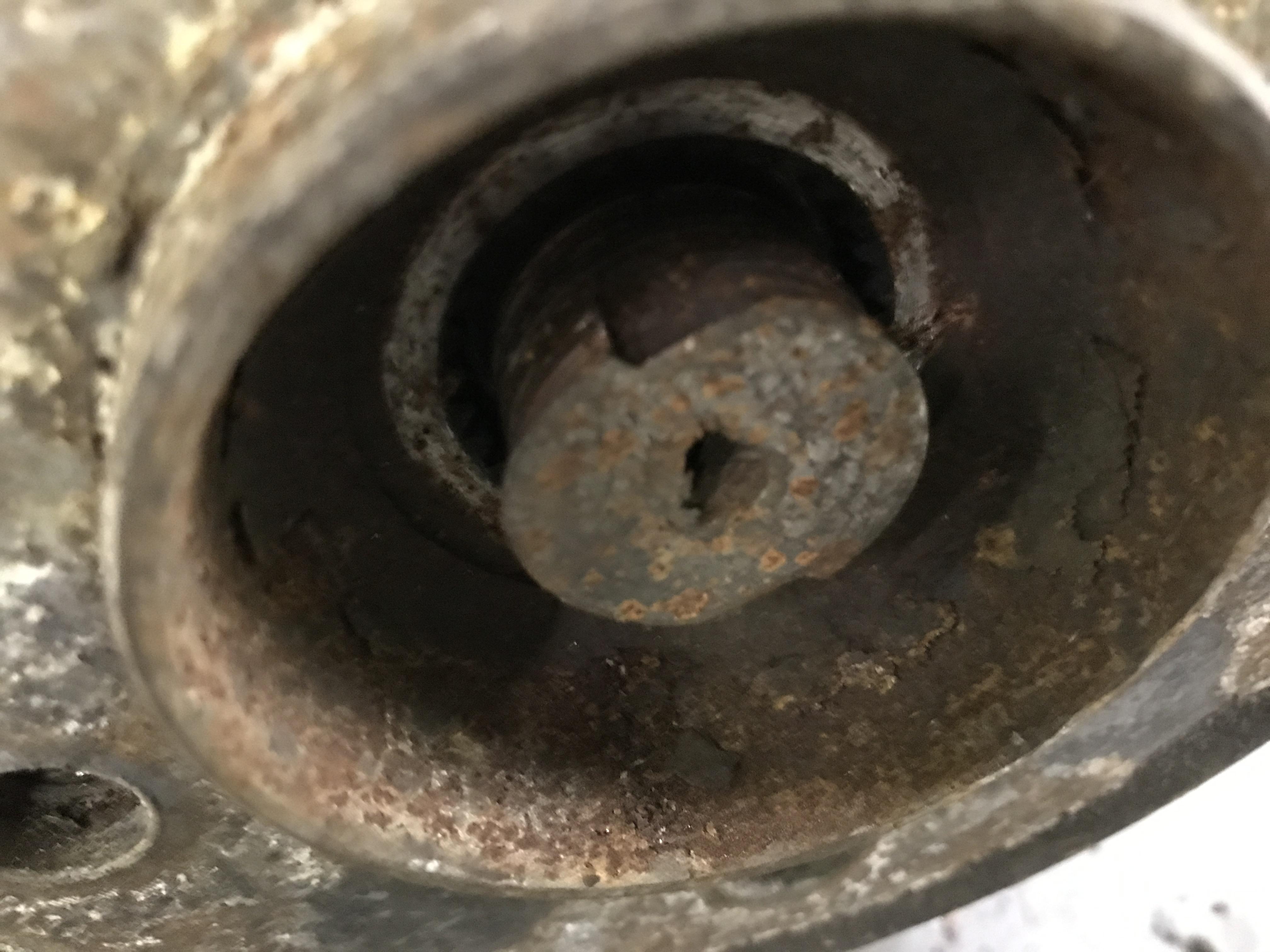

I also picked up that M3 rear Subframe, trailing arms, and axles from Tj.I striped the entire assembly down and plan on blasting it, painting it, and installing all the new bushings I bought. Sadly taking it apart I found that out that someone previously tried really, REALLY hard to remove one of the axles and smashed it into an unusable state. I am on the hurt for an M3 axle..

OHHH wait!

One last thing I almost forgot I bought.......

Also on the look out for a nice stage 2 or 3 cam.

[Jdesign]

I feel like its time to check in with you guys on the status of this machine....

Its sadly not lifted yet I mounted one tire to the 16" Procast as you saw above. I determined that it will not work unless I buy 5" spacers for all 4 corners. Im not doing that. my original plan was to flip a set of style 5's and get some aggressive 17"  tires. I am still on the look out to go this route.

The rear sub frame and axles are all completely apart and I began blasting everything. I did not finish this process yet due to the sandblasters lack of interior lighting. I have since ordered LEDs for the inside of the cabinet and will continue once I install them. getting back to the smushed axle threads, I will in fact need new M3 axles. Still on the hunt for these.

Cam and Gear drive THe gear drive is here, but I have still yet to order a cam. There are some many variables to ordering a cam due to the 30 odd years of production of this motor, I want to make sure I order the right cam for the job. I need to do more research.

Gastank Still leaks, and I sigh everytime I look at it.

That is all for now. Here is a rendering of the Phuture so this is not a pictureless post:

[GunMetalGrey]

I'm very curious to see your clearance plans to fit a 31" tire at that ride height.
5" spacers are huge! Have you thought about making longer suspension bits? I have had all kinds of horrible/awesome ideas to make that happen with the E30.

[Jdesign]

GunMetalGrey said:

I'm very curious to see your clearance plans to fit a 31" tire at that ride height.
5" spacers are huge! Have you thought about making longer suspension bits? I have had all kinds of horrible/awesome ideas to make that happen with the E30.


I have no idea what size tire I  will end up with. Its whatever shows up for sale that might fit. So 31" may or may not be what I find.

I rather stay away from changing a whole lot for suspension minus MAYBE making lift spacers for the front struts.

I rather cut into the car if its not structural vs. changing the suspension components.

[Jdesign]

Well.... Baby update. I have not done much to the car itself, due to a massive of list of other things that take precedent,  BUT I did finally find a set of aggressive tires that "might" fit.

245/75R17's that will fit on the flipped style 5's.

I know its very late in the winter season, but anytime, is better than no time to enjoy a lifted anything. I hope to mount and test fit overall offset before I actually lift the car. If I can get away with a 1" spacer and not cut into the chassis, I will be stoked.

[YoungCR]

Just in time for muddin’ Season

[Jdesign]

'notha update-

I made a trip out to FDL yesterday and Got another set of swing arms, axles, and sub frame from @Sam_Holzmann

I also got a nice surprise before leaving to pick up the parts. A nice size puddle of coolant under the car. It looks like the cheap radiator that is in it finally failed.

Next up, I will be mounting the new tires to wheels and test fitting with pics.

[straight6pwr]

in for jumping video.

[Jdesign]

straight6pwr said:

in for jumping video.

Damn. Now that's two videos I need to complete. Burnout with @Earl on the couch, and a jump. Maybe I could combine them?

[SteelBlue]

Jdesign said:

'notha update-

I made a trip out to FDL yesterday

Sorry to hear. The 8 hours a day I am here is enough for me.

[Earl]

Jdesign said:

Damn. Now that's two videos I need to complete. Burnout with @Earl on the couch, and a jump. Maybe I could combine them?

If you mount a set of seatbelts I would definitely be down for a combo=)

[Jdesign]

Earl said:

If you mount a set of seatbelts I would definitely be down for a combo=)

[Jdesign]

I learnt something a few days ago. E36 M's came with two different axles.

96+ with larger lighter hollow axles, previously the older style is a non-hollow solid shaft. Both interchange but have obviously different part numbers.

[Jdesign]

I haven't updated this in awhile, but I figured I could do a check in.

I have a mound of parts to install in this car and haven't had time to touch it. BUT since Halloween is right around the corner, I might need to get this thing on the road again, as it's perfect for the holiday.

I did manage to finally find a cam that I will use with the gear drive. It's a Comp cams camshaft spec'd at 236/242, .363"/.361" lobe lift and cut on a 111+4 lsa. I am not 100% if it will work, but I mean, what's the worst thing that could happen?

[jc43089]

They make more valves every day.

[REKIII]

Updates without pics are like.....well, I don't know what they are like, but they suck.  Do better.

[Jdesign]

jc43089 said:

They make more valves every day.

FACT.

[Jdesign]

REKIII said:

Updates without pics are like.....well, I don't know what they are like, but they suck.  Do better.

I agree. I will do better next time.

[Jdesign]

Just for @REKIII I started this for the first time in many months. It made the craziest noises from the fuel tank, but fired right up first try. It was slightly motivating

(Note the pile of parts on the roof waiting to be installed)

And the video isn't uploading  Can't do better due to technical difficulties.
